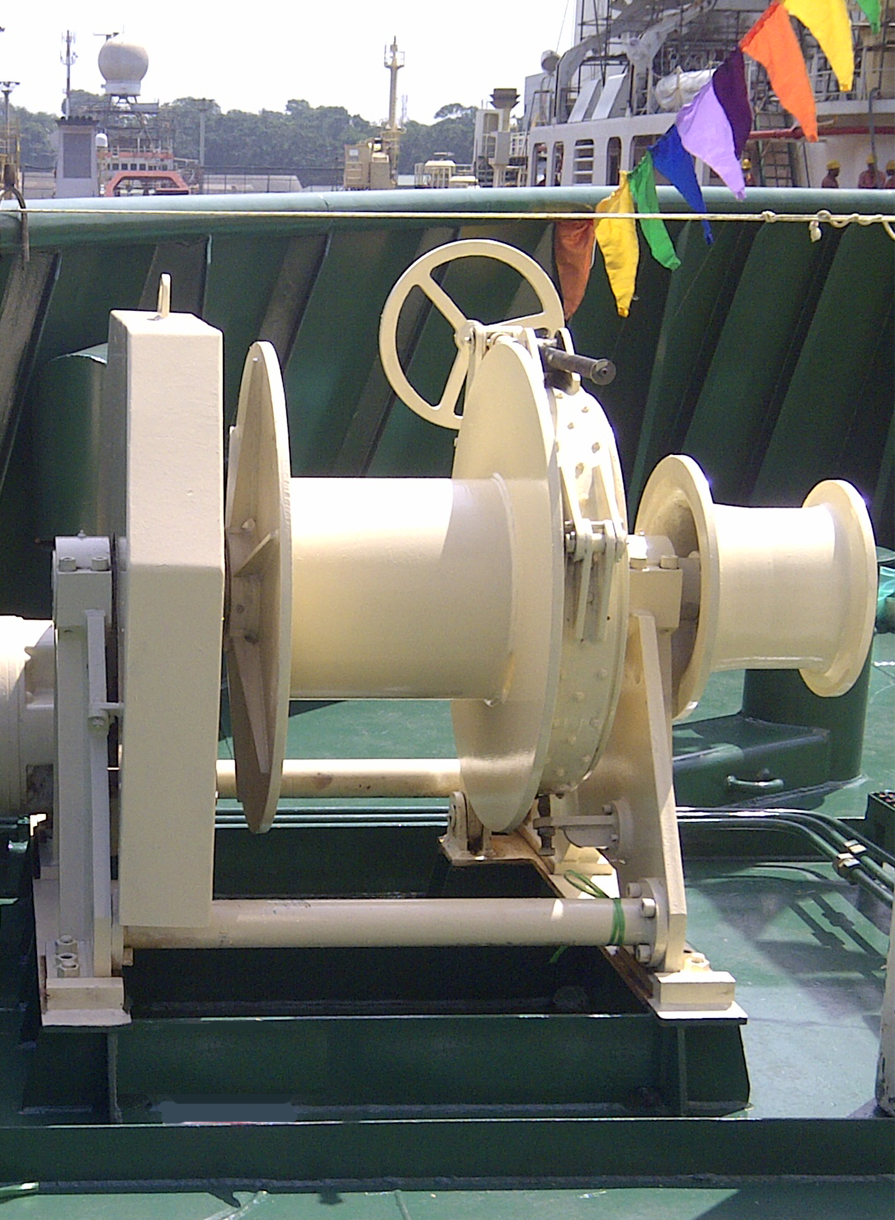

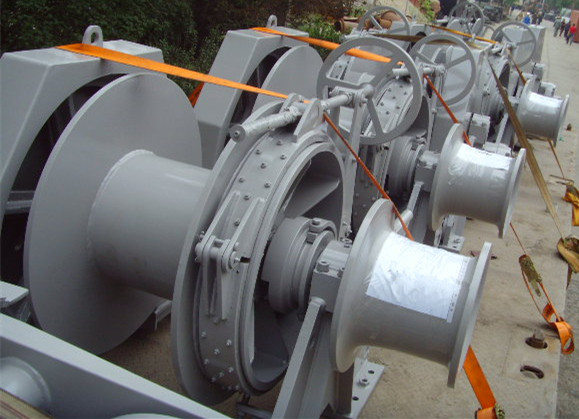

Tugger Winch
TSL offers a wide range of tugger winches powered by electric or hydraulic drive. The rugged design made by experienced engineers ensures trouble free operation. TSL’s tugger winches are designed for the extreme conditions onboard vessels.
Our tugger winches consists of a drum and warping end mounted on a common horizontal drive shaft. The drum is engaged to the drive shaft via a manually actuated jaw clutch while the warping end is permanently keyed to the drive shaft. Manually operated band brake is provided as standard.
FEATURES:
- • Drive: Hydraulic or electric
- • Configuration: Single drum
- • Warping end: With or without
- • Type of drum: Steel wire rope
- • Drum capacity: Depending on client requirement
- • Rated pull: Up to 20 tonnes (1st layer)
- • Speed: To suit operational requirements
- • Brake holding: Up to 30 tonnes (1st layer, static)
- • Clutch: Manually operated / hydraulic operated jaw clutch
- • Brake: Manually operated / hydraulic operated band brake
- • Control: Local or remote control
- • Type of vessel: Anchor Handling Supply Vessel/Offshore
- • service vessel/Tug Boat
