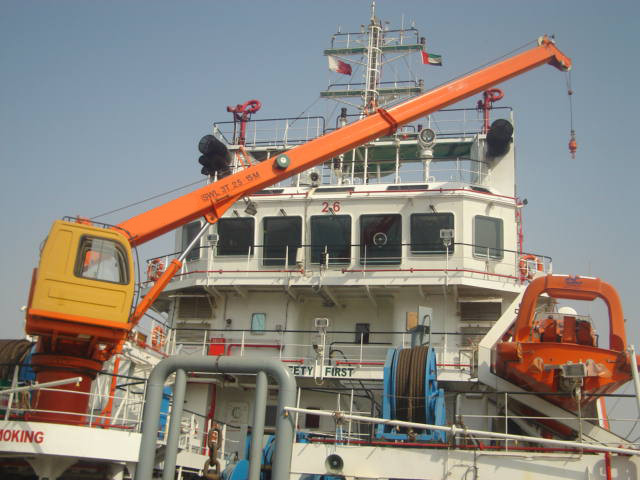

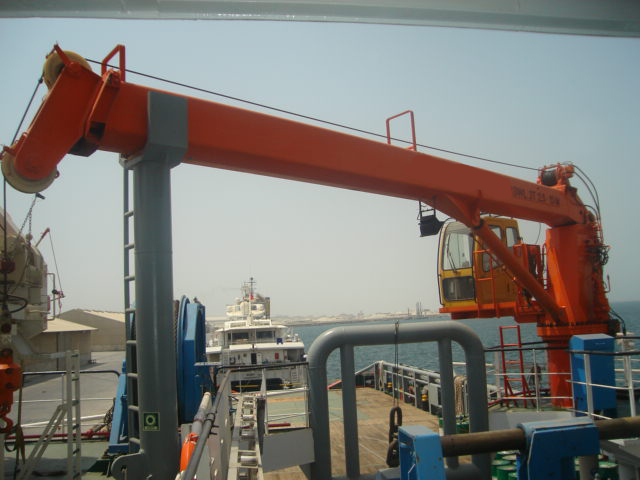

TSL telescopic series is fully hydraulic driven. The lifting capacity extends up to 50T with 800TM max tilting moment. Due to the telescopic boom configuration, the crane in stored position occupies a compact space. The extending telescopic boom enables flexible adjustment of the outreach to suit any operating conditions. Shorter cable lengths ensure safe load handling at close range. Operators appreciate the ease of maintenance and high level of safety.

TSL Telescopic crane is composed of boom structure, slewing column, slewing bearing, pedestal, hoisting winch, slewing drive, luffing cylinder, telescopic cylinder and power pack, etc.

★ Slewing drive：purchasing from famous brand product suit for marine environment or according to customer’s
     request
★ 360° Continuous rotation
★ Luffing: up to 80º
★ Hoisting winch: Compact design with planetary gearbox & hyd motor, easy to install and maintenance
★ Emergency release: manual operate to low down the load stably when crane lost power
★ Cut off switch: limit the hook upwards and downwards position to avoid over hoist & lost wire
★ Generally, Winding layer of wire rope is less than 3 layers on the drum, if need more layers, the LEBUS type
     groove will be applied
★ Man riding winch/crane: to make sure safety and reliability, 2 mechanical brake systems are equipped on the
     hoisting winch,safety coefficient of the wire rope is more than 8 or10,the structure strength coefficient is over 4
★ The power pack is usually installed inside the crane, the electric motor would be flexibly coupled to hydraulic
     pump which would be mounted on a fabricated bracket in the slewing column, the power are also provided
     by diesel engine or hydraulic power shear with others
