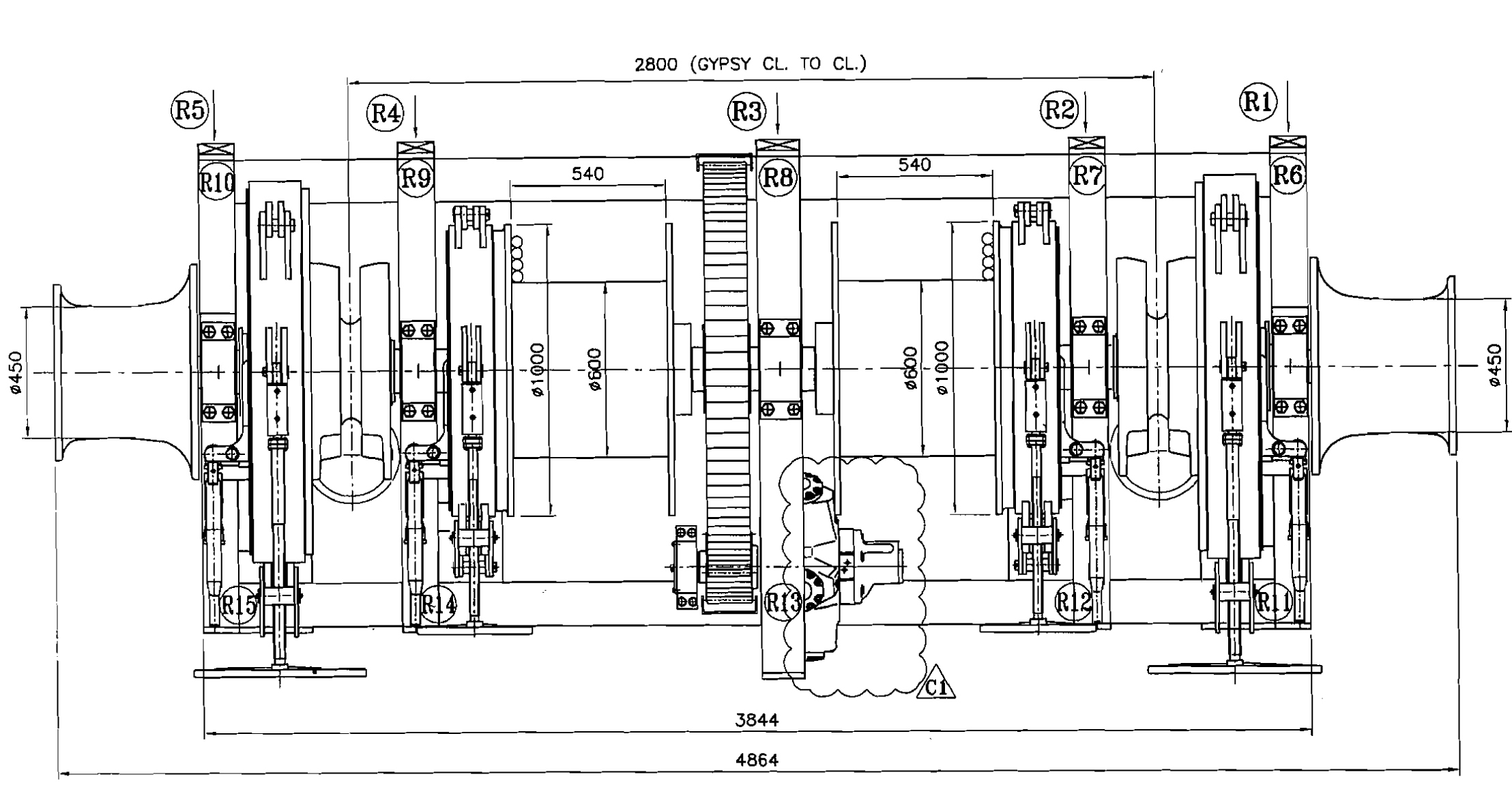

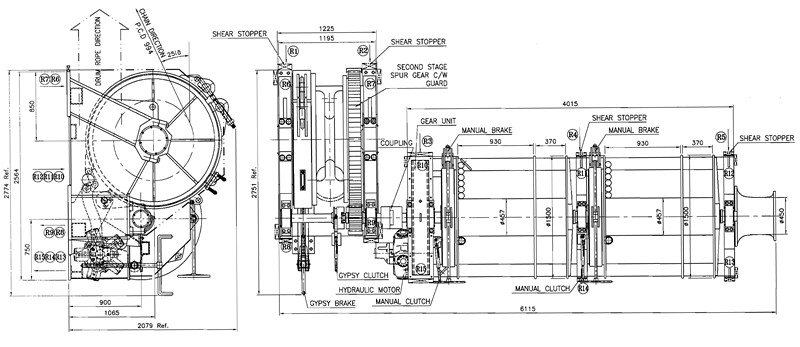

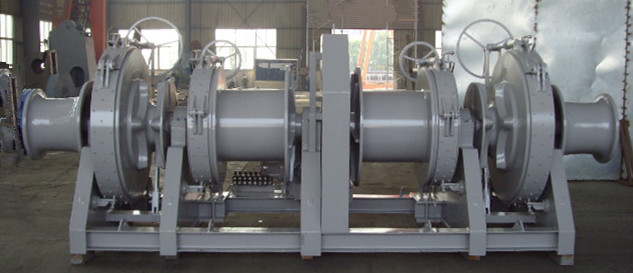

Windlass Mooring Winch
The windlass could be designed with a permutation of multiple gypsies, mooring drums, subject to vessel dimensional constraint. With one or two mooring drums in the centre and chain lifters on both sides, they ingeniously combine the function of a mooring winch and anchor windlass in one piece of deck equipment. Besides the benefical effect on equipment installation costs, this solution saves a considerable amount of space on deck.
In anchoring mode the nominal pull and speed of these winches are limited by the control system, while full capacity is available for mooring operations. The anchoring operation (brake and clutch) is manually controlled from deck, while mooring operation is controlled from the wheelhouse.
FEATURES:
- • Drive: Hydraulic or electric
- • Configuration: one or double mooring drum and two cable lifter
- • Chain size: Up to 122mm stud link chain
- • Gypsy clutch: Manually operated
- • Gypsy brake: Manually operated band brake
- • Drum: P.P rope or steel wire rope
- • Drum capacity: Depending on client requirement
- • Rated pull: Up to 50 tonnes (1st layer)
- • Speed: To suit operational requirements
- • Brake holding: Up to 100 tonnes (static, 1st layer)
- • Drum clutch: Hydraulic operated
- • Drum brake: Hydraulic operated
- • Control: Local control for windlass & remote control for mooring winch
- • Type of vessel: Maintenance Work Vessel/Tug Boat
OPTIONS:
- • With or without warping end
- • Hydraulic operated gypsy clutch/brake
- • Spooling device for drum
- • Stainless steel brake drum
- • Remote control for windlass
