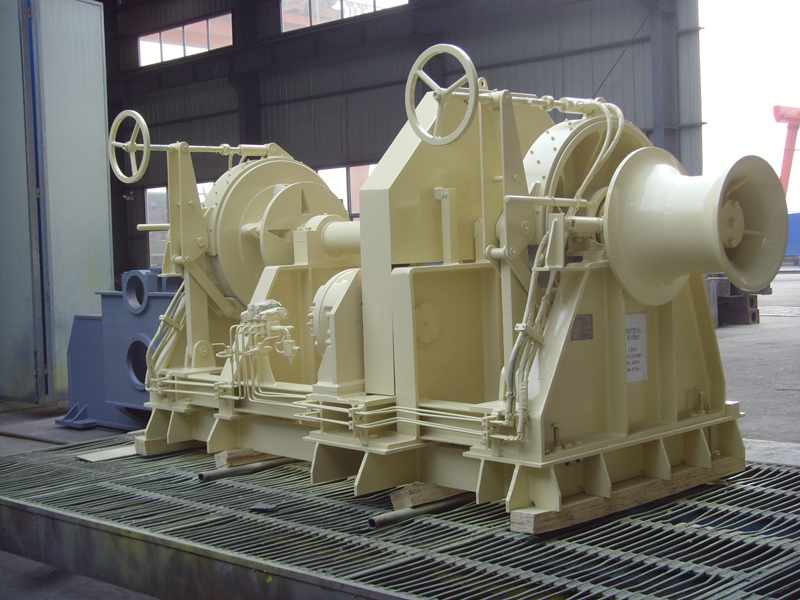

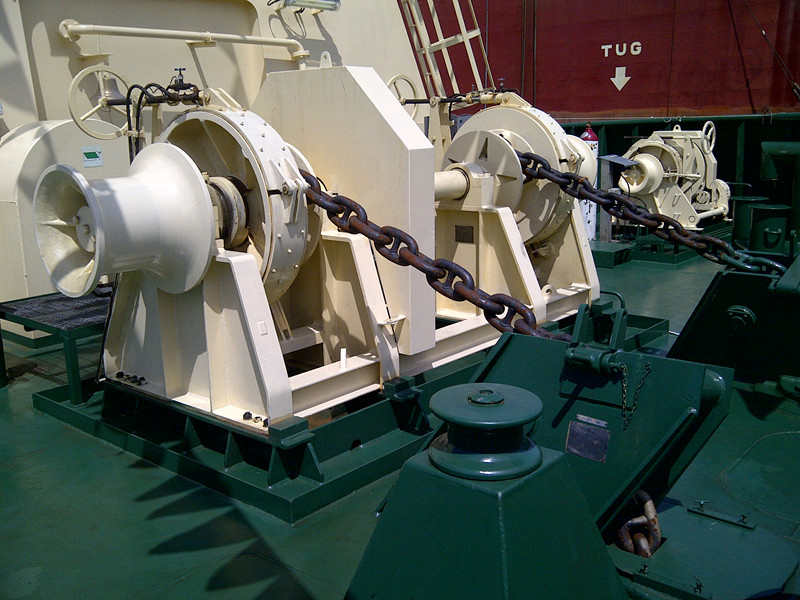

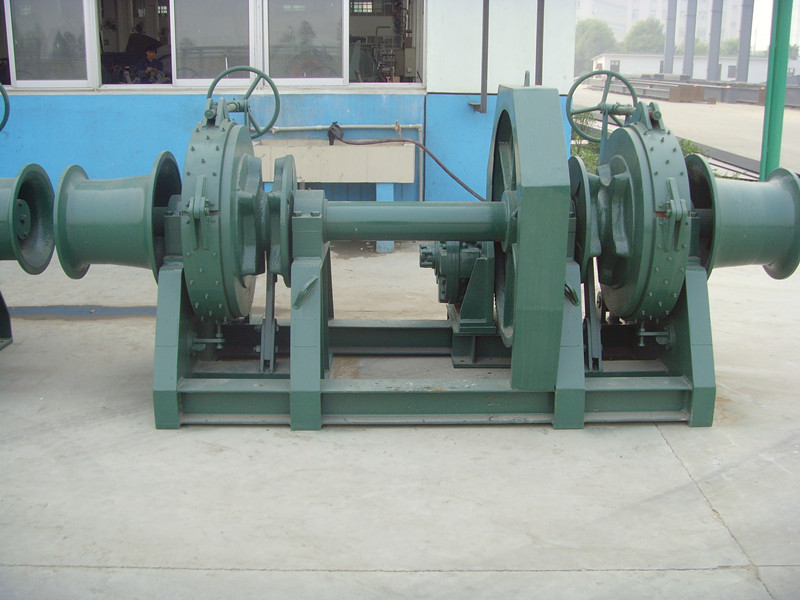

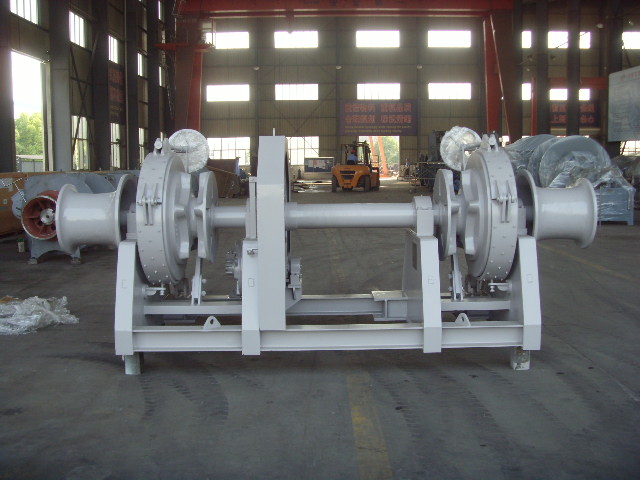

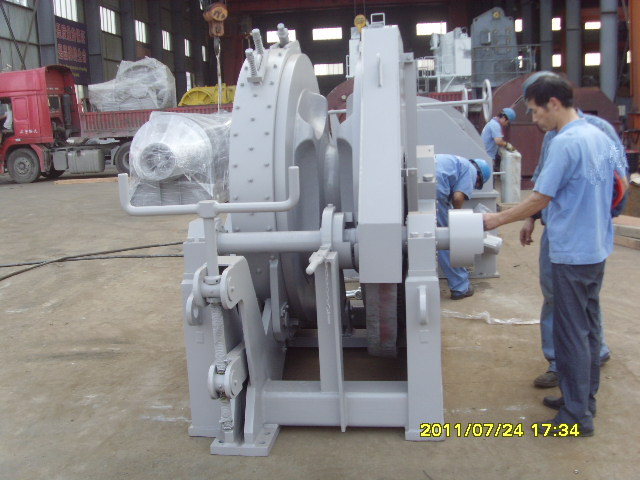

Anchor Windlass
Whatever your anchor application is, our line of windlass winches offers a variety of styles and sizes to handle it. Standard features include fabricated steel construction, gears hardened to exceed working load requirements, clutched and braked drum and corrosion resistance. Electric or hydraulic drives are available along with warping heads. We can modify windlasses to suit your application and special operating requirements.
TSL’s windlass winches have rugged design and heavy duty split bronze bearings. The operating mechanism for brakes and clutches are designed for easy and safe manual operation, but may also be remotely operated by hydraulic cylinders. The brakes are easily adjustable. The winch design provides easy access to all points for lubrication and inspection.
FEATURES:
- • Drive: Hydraulic or electric.
- • Configuration: Single or double cable lifter
- • Chain size: Up to 122mm stud link chain
- • Clutch: Manually operated
- • Brake: Manually operated band brake
- • Control: Local control
- • Type of vessel: Maintenance Work Vessel/Harbor Tug/Terminal Tug/Escort Tug/Anchor Handling Supply Vessel
OPTIONS:
- • With or without warping end
- • Hydraulic operated clutch/brake
- • Stainless steel brake drum
- • Remote control
