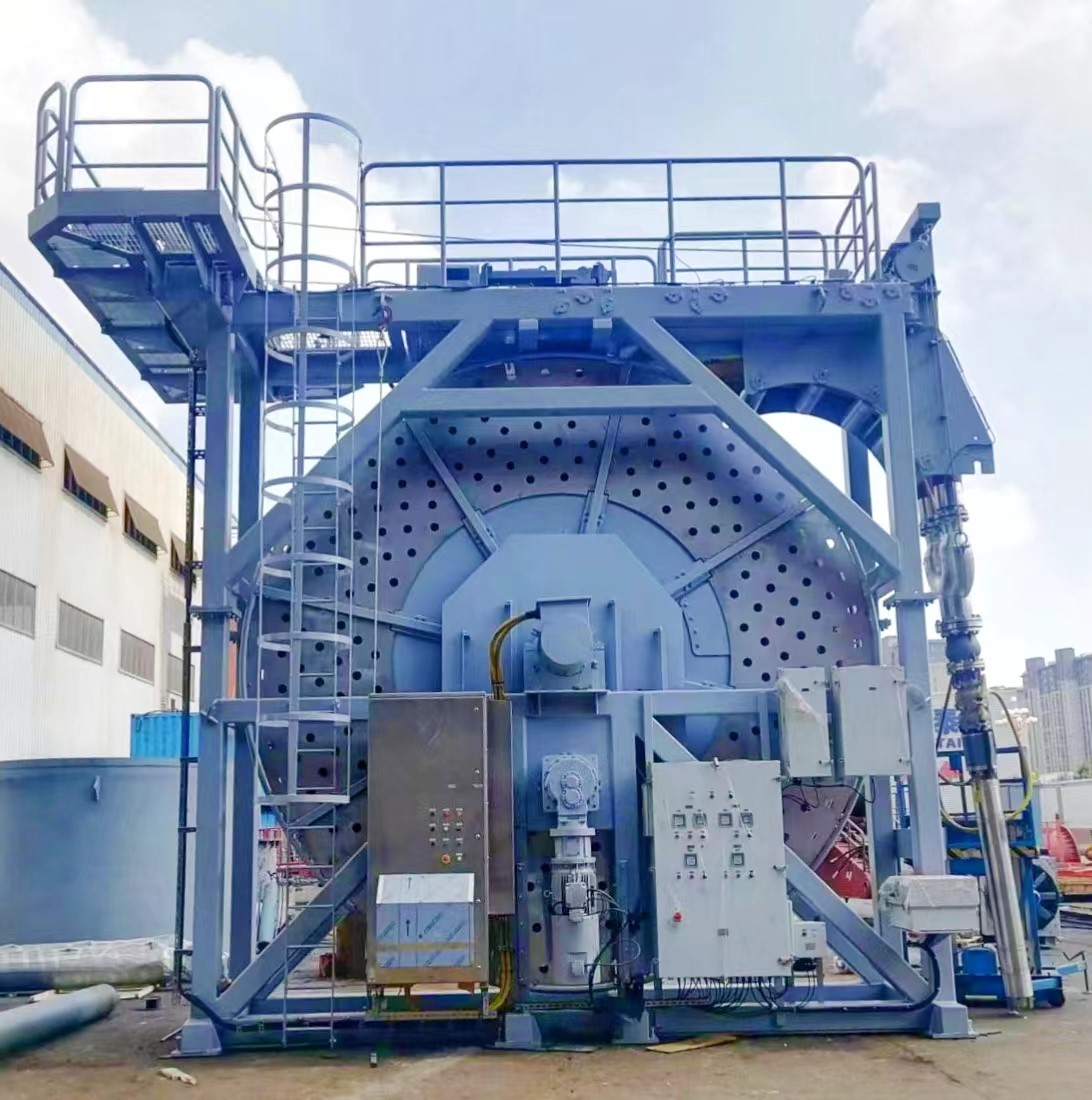

Submersed Pump Hose Reel (SRW-2-6-75-E)

Application

Served for self-elevating wind turbine installation vessel

Class

DNV

Equipment Brand

SHG

Ship yard

COSOC

Owner

Cadeler

Hose Reel

Used to lift and store seawater hose with submersible pump.

Drum Capacity

2 x 75 m x 6’’ (196mm O.D) seawater hose

Drum Rated Pull

10T @ 1st Layer

Speed

6m/min@ 1^st layer (=0.74 rpm)

Centre Pipe Shaft

SS316L

Connection

Flange Connection To Hose

Electric Connection

Slip Ring, IP56

Brake

Disk type, failure safe

Brake Holding

12.5T (Static, 1st Layer)

Control

VFD Control Box Onto Reels

Stable Winch (2 Set)

Used to keep the pump stable when it is working under the seawater and reduce the affection from the wind and waves.

Drum Capacity

85m x Dia 14mm SWR (3 layer)

Drum Rated Pull

1.5t @ 1^st layer

Speed

0-15 m/min @ 2^nd layer

Local Control

VFD Control Box Onto Reel

Telescoping System

Used to extend the pump out of vessel when working and retract the pump nearby the hose reel skid for storage.

Extension/Retraction

800 mm/28 sec

Motor Brake

Disk Type Fail Safe

Local Control

DOL Control Box Onto Reel
